Cable burial SeAlien Robotics
Phoenix 600
A 600 hp ROV-type trencher with interchangeable track and skid configurations.
Discuss this system
SeAlien Robotics / Product configurationTechnical details
- System power
- 600 hp
- Working depth
- 5-2,500 m
- Maximum burial depth
- 3 m
01 / Overview
Configured around
the work.
Phoenix 600 is a SeAlien jetting trencher for deepwater cable burial. Its interchangeable travelling arrangements support work across different seabed conditions. Independent jetting circuits and adjustable swords allow the spread to be configured for the cable and trench profile. For projects requiring a different depth or burial profile, configuration is reviewed with SeAlien before quotation.
Manufacturer: SeAlien Robotics
Gulf of Mexico agent: Amerig Subsea
Interchangeable running gear
Track and skid options use compatible interfaces for different ground conditions.
Cable tracking
Navigation and cable-detection equipment can be configured around the project requirements.
Independent jetting
Separate water circuits and an optional depressor accommodate different cable properties.
System details
Tooling and
deployment.
Operating conditions, equipment options and deployment requirements.
01Track or skid
Interchangeable track and skid arrangements support different seabed conditions. Approximate air weight is 12.5 t in skid mode and 13.5 t in track mode; the selected arrangement is factored into deployment planning.
02Navigation and cable detection
Available sensor options include sonar, USBL, INS, DVL and cable-tracking equipment. The navigation package is matched to the project and supplied configuration.
03Jetting control
Independent water circuits and adjustable jetting-sword spacing support different trench profiles. An optional depressor accommodates different cable characteristics. Maximum burial depth is 3 m for the listed model.
02 / Technical details
Specifications
Specifications vary across the range. Amerig will help match the model, options and operating limits to your project scope.

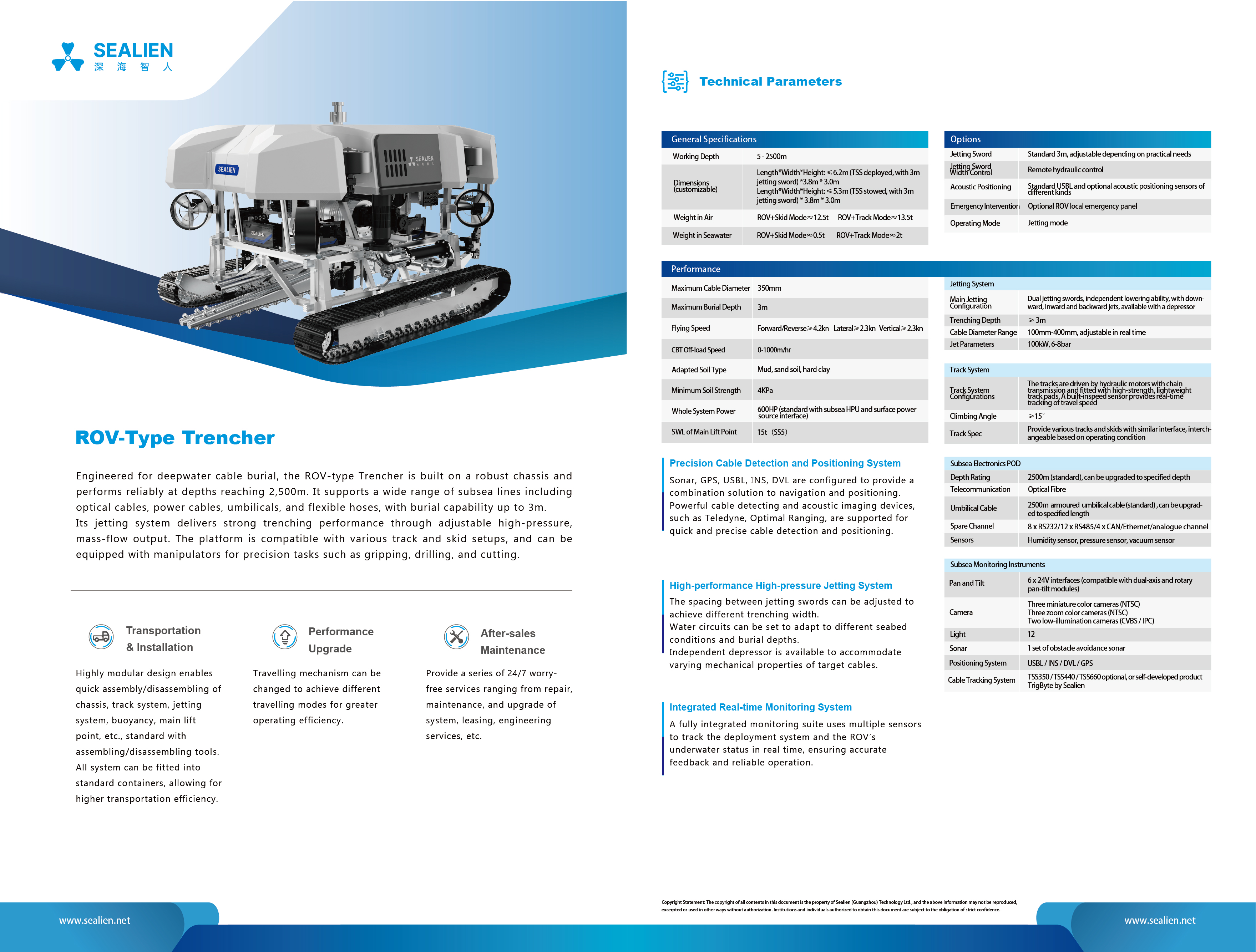

Download data sheet| System power | 600 hp |
|---|---|
| Working depth | 5-2,500 m |
| Maximum burial depth | 3 m |
| Maximum cable diameter | 350 mm |
| Weight in air, skid mode | Approximately 12.5 t |
| Weight in air, track mode | Approximately 13.5 t |
| Main lift point SWL | 15 t |
| Deployment | Track or skid configuration |
Final ratings and included options depend on the selected configuration.
