Cable burial SeAlien Robotics
Taurus
A tracked burial system for subsea cables and pipelines, with configurable jetting and cutting tools.
Discuss this system
SeAlien Robotics / Product configurationTechnical details
- System power
- 1,600 hp
- Working depth
- 500 m
- Maximum burial depth
- 5 m
01 / Overview
Configured around
the work.
SeAlien Taurus combines a modular open frame with a tracked platform for cable and pipeline burial. Jetting, chain-cutting and wheel-cutting options allow the system to be configured around the seabed and target burial depth. Amerig coordinates equipment enquiries for Gulf of Mexico projects with the manufacturer.
Manufacturer: SeAlien Robotics
Gulf of Mexico agent: Amerig Subsea
Adaptable excavation
Select jetting or mechanical cutting to suit the soil and cable specification.
Cable protection
Cable survey devices, load sensors and independently adjustable jetting swords support controlled burial.
Modular deployment
Chassis, tracks and tooling can be assembled as a project-specific spread.
System details
Tooling and
deployment.
Operating conditions, equipment options and deployment requirements.
01Tooling and seabed
The modular open frame supports jetting for sandy seabeds, chain cutting for clay or sandstone, and wheel cutting for rocky terrain. Tooling is selected around the soil and burial requirements.
02Cable protection and tracking
Available options include floating jetting, cable survey equipment and load sensing. Jetting-sword spacing and water circuits can be configured around the cable and burial profile.
03Deployment planning
Chassis, track and jetting modules are designed for assembly and disassembly. Vessel interface, lift arrangement, ground pressure and transport envelope are reviewed for the proposed spread.
02 / Technical details
Specifications
Specifications vary across the range. Amerig will help match the model, options and operating limits to your project scope.

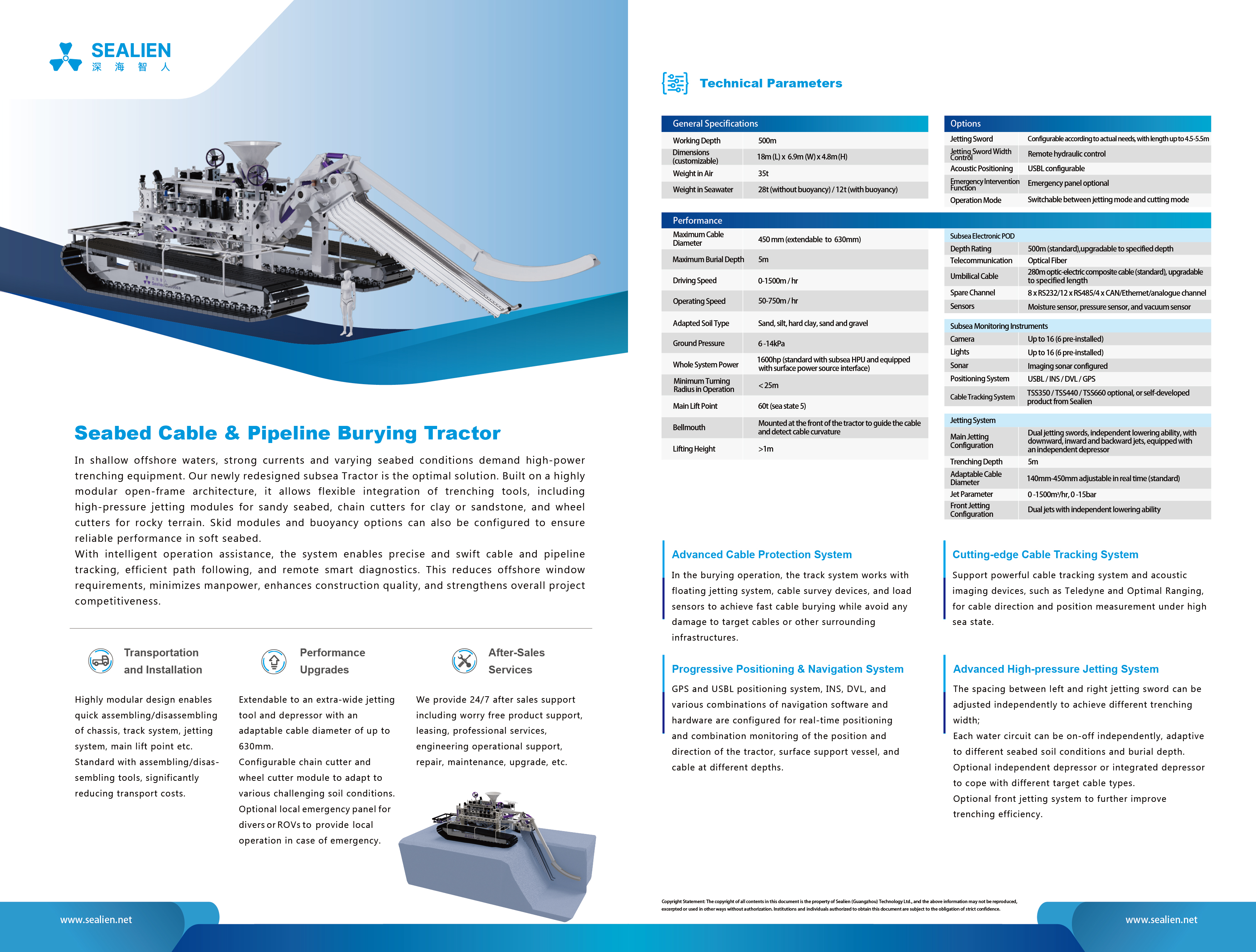

Download data sheet| System power | 1,600 hp |
|---|---|
| Working depth | 500 m |
| Maximum burial depth | 5 m |
| Cable diameter | 450 mm; optional extension to 630 mm |
| Dimensions | 18 x 6.9 x 4.8 m |
| Weight in air | 35 t |
| Operating speed | 50-750 m/h |
| Ground pressure | 6-14 kPa |
Final ratings and included options depend on the selected configuration.
