Work-class ROV
An intervention platform with configurable power, depth rating and hydraulic tooling.
Discuss this system
SeAlien Robotics / Product configurationTechnical details
- Power options
- 100 / 150 / 250 / 400 hp
- Depth options
- 1,500 / 3,000 / 4,000 / 6,000 m
- Example power rating
- 250 hp
01 / Overview
Configured around
the work.
SeAlien work-class ROV systems support subsea inspection, tooling and intervention. The range includes 100, 150, 250 and 400 hp models with depth options up to 6,000 m. Power, depth, payload and tooling are matched to the selected model and project scope. Amerig helps define the required configuration with SeAlien.
Manufacturer: SeAlien Robotics
Gulf of Mexico agent: Amerig Subsea
Intervention tooling
Hydraulic interfaces support a project-specific selection of manipulators and tools.
Assisted navigation
Positioning, obstacle detection and route-planning options support the pilot.
Serviceable architecture
Modular hardware allows configuration changes and component maintenance.
System details
Tooling and
deployment.
Operating conditions, equipment options and deployment requirements.
01Positioning and navigation
Selected configurations offer position hold and heading, depth and altitude control, with navigation options including fibre-optic gyro, DVL, USBL and sonar.
02Tooling and payload
More than 12 general-purpose hydraulic interfaces support a range of tools. Payload, through-frame lift, hydraulic supply and the selected tool package are reviewed together.
03Modular architecture
A modular, distributed architecture supports configuration changes and maintenance. Power, camera and data-link options are selected around the operating scope.
02 / Technical details
Specifications
Specifications vary across the range. Amerig will help match the model, options and operating limits to your project scope.

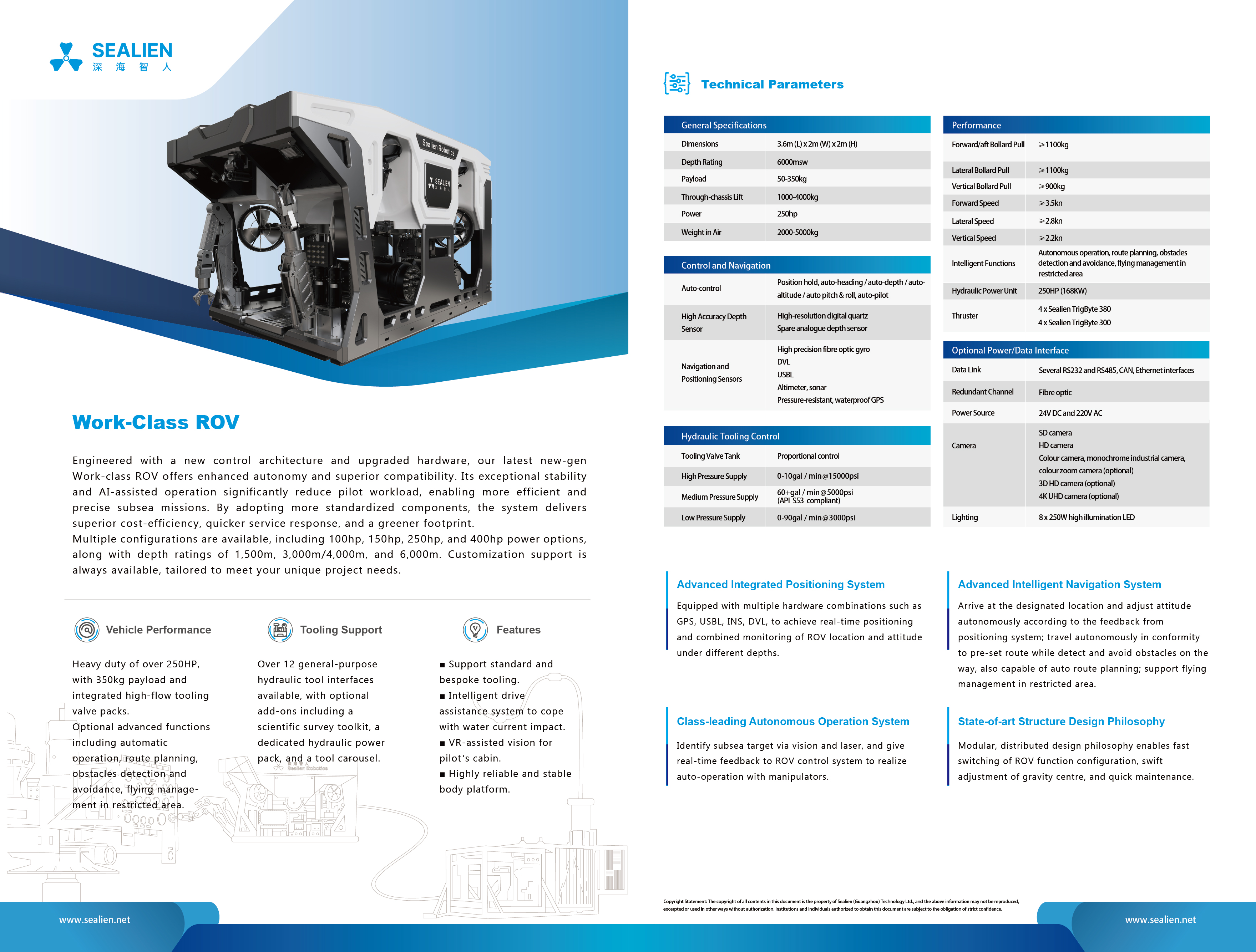

Download data sheet| Power options | 100 / 150 / 250 / 400 hp |
|---|---|
| Depth options | 1,500 / 3,000 / 4,000 / 6,000 m |
| Example power rating | 250 hp |
| Example payload range | 50-350 kg |
| Example dimensions | 3.6 x 2 x 2 m |
| Through-chassis lift | 1,000-4,000 kg; varies by configuration |
| Tool interfaces | More than 12 hydraulic interfaces |
| Control | Position hold and assisted navigation |
Final ratings and included options depend on the selected configuration.
03 / Equipment enquiry
Start with
your scope.
Tell us the intended application, operating requirements and project timing. Amerig will coordinate the proposed configuration with SeAlien.
